SL 408 Outdoor

The Smartlift SL 408 Outdoor Series is a versatile all-round glass manipulator that is equally suited to both indoor and outdoor activity. Depending on the model and outreach, these machines feature a lift capacity of up to 430 kilograms and a lift height of up to 3.7 meters. Like all Smartlift models, this unit is very simple to operate and extremely reliable.

For medium to large sized shopfront windows, panoramic vistas and sliding patio doors, this unit will lift, carry and manipulate with millimeter precision making light work for the installer. All Smartlift glazing robots have a dual circuit vacuum resulting in a fail-safe system.

Smartlift’s SL 408 range has recently superseded the popular SL 380 range.

Available Models:

  • SL408 Outdoor
  • SL408 Outdoor High Lifter
  • SL408 Outdoor High Lifter Rotation
  • SL408 Outdoor High Lifter Electric
  • SL408 Outdoor High Lifter Electric Rotation
Download Brochure

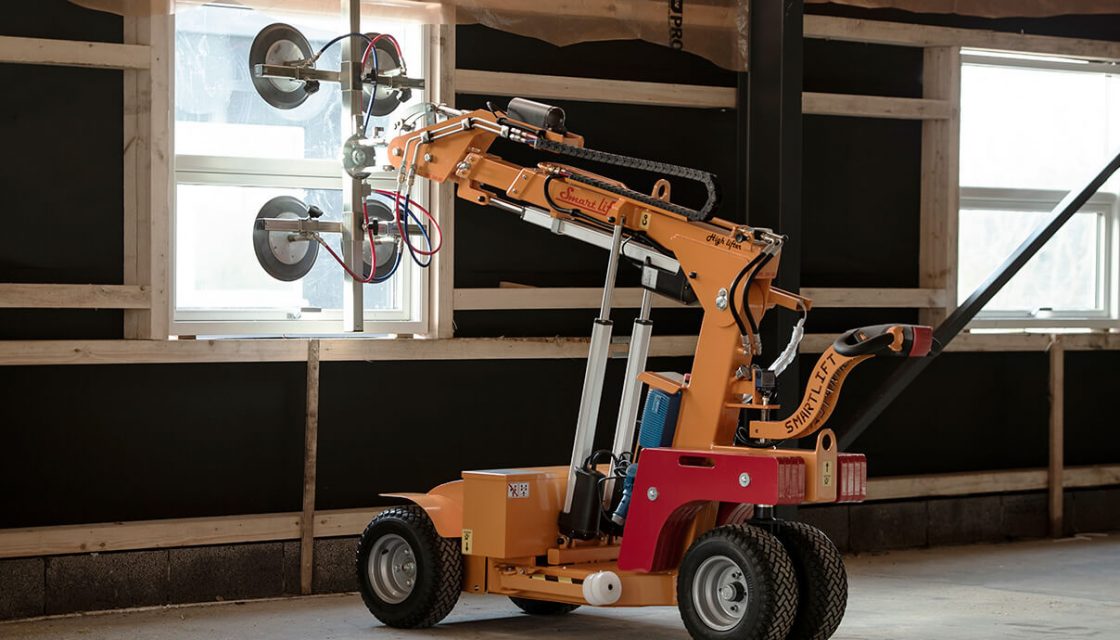

Smartlift SL 408 Outdoor

Key Features

  • Up to 430 kg lifting capacity (depending on the model and outreach)
  • Up to 3.7m lifting height (depending on the model and outreach)
  • Off-road chassis with front-wheel drive
  • Sideway shifting up to 10 cm (4") for higher flexibility
  • Large wheels
  • Dual rear wheels
  • Two vacuum circuits with two pumps
  • Waterproof according to ip65
  • High Lifter version (HL/HLE) for extended reach
  • Electric version (HLE/HLE RT) featuring a motorised boom
  • Rotating version (HL RT/HLE RT) featuring a rotating head

Available Models

Specifications - SL 408 Outdoor

Lifting cap. arm in/out 430/200 kg - 950/440 lbs
Lifting height 3,100 mm/122 in.
Extension of arm 600 mm /24 in.
Tip from horizontal 45° back/ 105° fwd.
Side shift 100 mm /4 in.
Charging voltage 230 V / 110V
Charging time Approx. 8 hrs.
Running period Up to 10 hrs.
Front-wheel drive 1200 W AC
Suction pads 4 x Ø 300mm/4 x Ø12 in.
Width 820 mm / 32 in.
Curb weight 660 kg/1,455 lbs.
Class IP 65

Specifications - SL 408 Outdoor HL

Lifting cap. arm in/out 430/90 kg - 950/200 lbs
Lifting height 3,600 mm/142 in.
Extension of arm 600 + 600 mm/24 + 24 in.
Tip from horizontal 45° back/ 90° fwd.
Side shift 100 mm /4 in.
Charging voltage 230 V / 110V
Charging time Approx. 8 hrs.
Running period Up to 10 hrs.
Front-wheel drive 1200 W AC
Suction pads 4 x Ø 300mm/4 x Ø12 in.
Width 820 mm / 32 in.
Curb weight 630 kg - 1,390 lbs.
Class IP 65

Specifications - SL 408 Outdoor HL RT

Lifting cap. arm in/out 430/100 kg - 950 /220 lbs.
Lifting height 3,700 mm/145 in.
Extension of arm 600 + 600 mm/24 + 24 in.
Tip from horizontal 45° back/ 90° fwd.
Side shift 100 mm/4 in.
Charging voltage 230 V / 110V
Charging time Approx. 8 hrs.
Running period Up to 10 hrs.
Front-wheel drive 1200 W AC
Suction pads 4 x Ø 300mm/4 x Ø12 in.
Width 820 mm / 32 in.
Curb weight Up to 730 kg/1,600 lbs.
Class IP 65

Specifications - SL 408 Outdoor HLE

Lifting cap. arm in/out 430/90 kg - 950/200 lbs
Lifting Height 3,600 mm/142 in
Extension of Arm 600 + 600 mm/24 + 24 in
Tip From Horizontal 45° back/90° fwd
Side Shift 100 mm/4 in
Charging Voltage 230 V/110 V
Charging Time Approx. 8 hrs
Running Period Up to 10 hrs
Front-Wheel Drive 1200 W AC
Suction Pads 4 x Ø 300mm/Ø12 in
Width 820 mm / 32 in
Curb Weight 700 kg/1,540 lbs
Class IP 65

Specifications - SL 408 Outdoor HLE RT

Lifting cap. arm in/out 430/90 kg - 950/200 lbs
Lifting Height 3,700 mm/145 in
Extension of Arm 600 + 600 mm/24 + 24 in
Tip From Horizontal 45° back/90° fwd
Side Shift 100 mm/4 in
Charging Voltage 230 V/110 V
Charging Time Approx. 8 hrs
Running Period Up to 10 hrs
Front-Wheel Drive 1200 W AC
Suction Pads 4 x Ø 300mm/Ø12 in
Width 820 mm / 32 in
Curb Weight Up to 730 kg/1,600 lbs
Class IP 65

Optional Extras

Smartlift glazing robots are available with a wide range of optional accessories. The robot can be quickly transformed into a lifting crane or a forklift truck with the right purpose-built accessory. Follow the link below to download the full list of Smartlift accessories.

Smartlift Accessories
