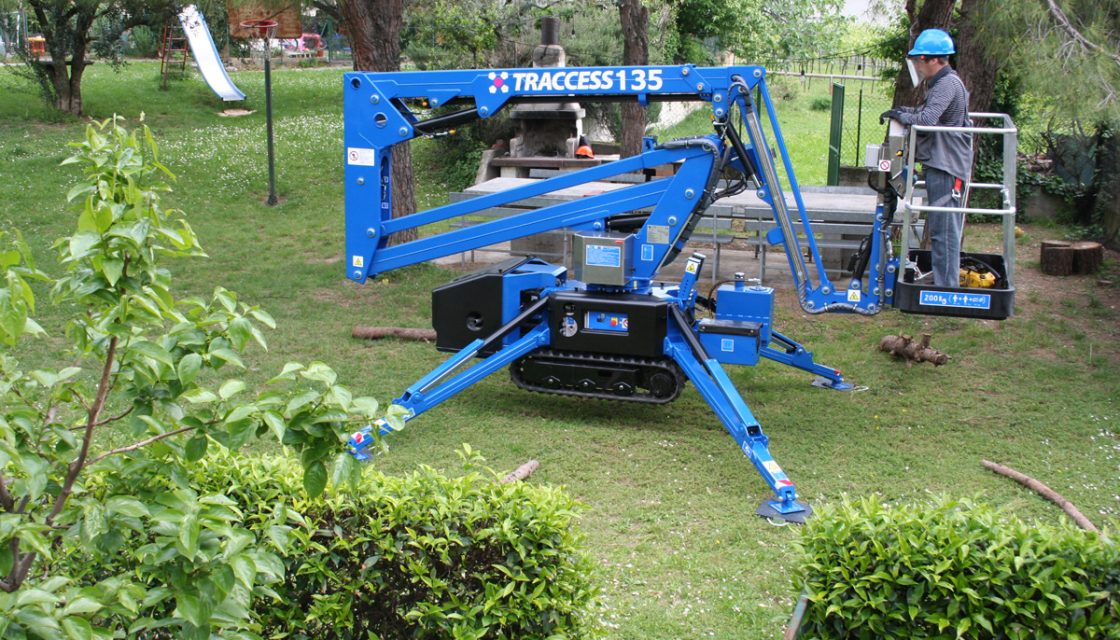

The TRACCESS 135 from CTE is a versatile and efficient access platform, ideal for a variety of applications. It features a unique articulated boom design with one element, a telescopic boom (main boom + extension), and a jib, providing excellent manoeuvrability and outreach. This platform offers an impressive working height of up to 13 metres and a maximum outreach of 6.5 metres, making it suitable for tasks in either tight spaces or at considerable heights.
Boasting a 320° turret rotation on a bearing turntable, the TRACCESS 135 features enhanced flexibility and ease of positioning. The platform is equipped with individual hydraulic controls in the basket that allow for precise and responsive movement. For added convenience, the engine start and stop controls are also located in the basket.
Safety and stability are paramount with this model, which includes a basket load sensing device and four hydraulic outriggers with ground pressure sensors. The outriggers ensure stable and secure operation, even on uneven surfaces. Additionally, the basket is constructed from a composite material with aluminium guardrails, providing both durability and safety for the operator.

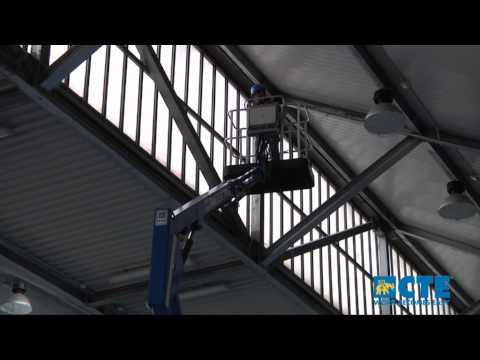

The TRACCESS 135 is designed for a range of applications, including building maintenance and is particularly suited for green spaces, making it an excellent choice for landscaping and tree care tasks.
Download Working EnvelopeDownload Brochure
Key Features
- Articulated boom (one element) + telescopic boom (main boom + extension) + jib
- 320° turret rotation on bearing turntable
- Individual hydraulic controls in basket
- Engine start and stop controls from basket
- Basket base in composite material with aluminium guardrails
- Automatic hydraulically actioned basket levelling system
- Basket load sensing device
- 4 x hydraulic outriggers with ground pressure sensors
- Extending width drive track
- Lower platform height with extended track
Specifications
| Max Lift Capacity | 200 kg (2 persons) |
|---|---|
| Max Working Height | 13 m* |
| Max Outreach | 6.5 m* |
| Transport Dimensions (L x W x H) | 3760 x 780 x 2000 mm |
| Basket Dimensions | 1300 x 780 x 1100 mm |
| Floor Height | 11 m |
| Turret Rotation | 320º |
| Outrigger Support Dimensions | 2852 x 2852 mm |
| Total Weight | 1600 kg |
| Engine | 230 V 1,5 Kw auxiliary engine |
| Max Drive speed | 1,5 Km/h |
* outreach and max height values can change within ± 3% due to manufacturing variation and working condition.
