TRACCESS 230 E

The TRACCESS 230 E is an eco-friendly, electric-powered track-mounted access platform from CTE, designed for a variety of high-reach tasks. It features an articulated boom with two elements, a telescopic boom with two extensions, and a jib, providing a working height of up to 23 metres and a maximum outreach of 12 metres. The platform offers a 360° non-continuous turret rotation and is equipped with proportional electrohydraulic controls, ensuring precise movement and operation.

This model is well-suited for environments where noise and emissions are a concern, making it ideal for indoor use and urban areas. The TRACCESS 230 E combines environmental consciousness with powerful performance, ensuring efficiency without compromising on functionality.

The CTE TRACCESS 230 E is highly versatile and can be used in a variety of applications, including wind power, bridge maintenance, construction, and tree care. Its electric power source makes it an excellent choice for sustainable and sensitive working environments.

Download Working EnvelopeDownload Brochure

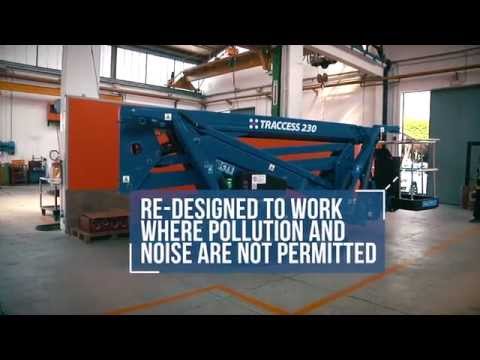

The CTE TRACCESS 230 E access platform.

Key Features

  • Articulated boom (two elements) + telescopic boom (main boom + 2 extension) + jib
  • Sigma boom movement enabled by connecting rods
  • 360° non continuous turret rotation on bearing turntable
  • Proportional electrohydraulic controls in the basket
  • Engine start and stop controls from the basket
  • Basket base in composite material with aluminium guardrails
  • 90° right + 90° left hydraulic basket rotation
  • Basket load sensing device

Specifications

Max Lift Capacity 200 kg (2 persons)
Max Working Height 23 m*
Max Outreach 12 m*
Transport Dimensions (L x W x H) 5337 x 780 x 2010 mm
Basket Dimensions 1300 x 700 x 1100 mm
Floor Height 21 m
Turret Rotation 360º
Outrigger Support Dimensions 4324 x 4220 mm
Total Weight 3,15 t
Battery 48V 300 Ah Lithium battery
Max Drive speed 2 km/h

* outreach and max height values can change within ± 3% due to manufacturing variation and working condition.
