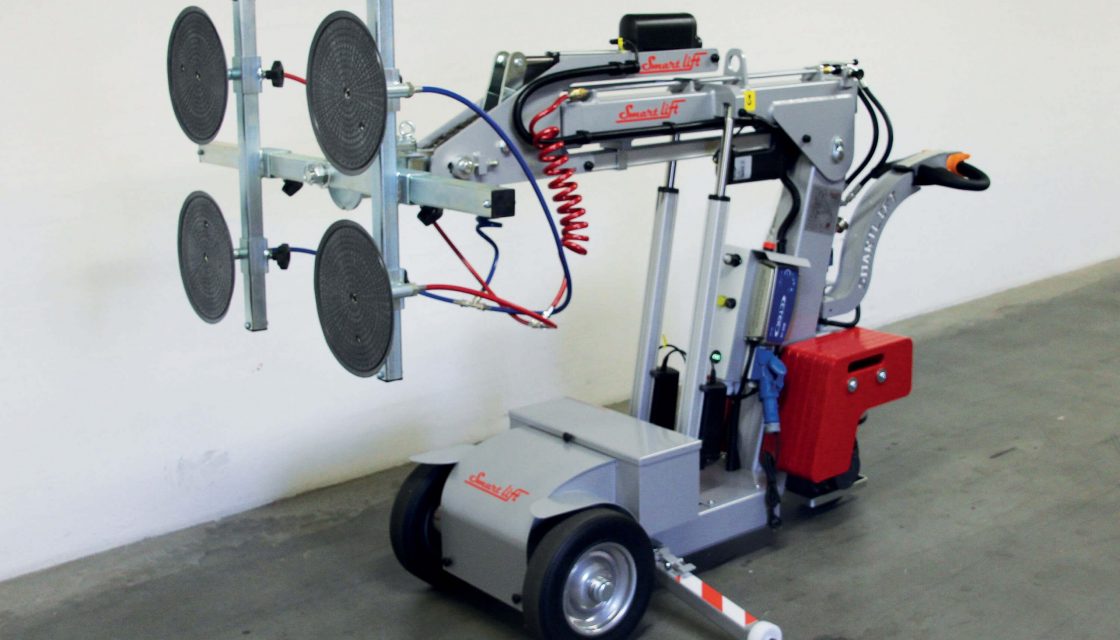

The Smartlift SL 380 Indoor (midi) is at home on a slab floor surface. With a curb weight of just 520 kg’s, it can be used on most mezzanine floors with low point loading tolerances such as office blocks and flats. The unit is capable of lifting, transporting and manipulating 380 kg of glass and can carry the load through an opening of just over 650mm.
Smartlift glazing robots are a firm favourite of multi-level building sites where precision window installation and glass fitting can be a single person operation. This makes commercial glazing both safe and cost-efficient.
Download Brochure
Key Features
- Small and reliable
- 380 kg lifting capacity
- 2.7 m lifting height
- Two vacuum circuits with two pumps
- Four reliable suction pads (300 mm)
Available Models
Specifications - SL 380 Indoor
| Lifting cap. arm in/out | 380/210 kg - 840/460 lbs. |
|---|---|
| Lifting height | 2,700 mm / 106 in. |
| Extension of arm | 500 mm / 20 in. |
| Tip from horizontal | 45° back/ 105° fwd. |
| Side shift | 100 mm / 4 in |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Battery (2 x 12V) | 2 x 60 Ah |
| Running period | Up to 10 hrs. |
| Rear-wheel drive | 700 W DC |
| Brake | Electro-magnetic |
| Suction pads | 4 x Ø300mm / 4 x Ø12 in. |
| Width | 650 mm / 26 in. |
| Curb weight | 520 kg / 1,150 lbs. |
Optional Extras
Smartlift glazing robots are available with a wide range of optional accessories. The robot can be quickly transformed into a lifting crane or a forklift truck with the right purpose-built accessory. Follow the link below to download the full list of Smartlift accessories.
