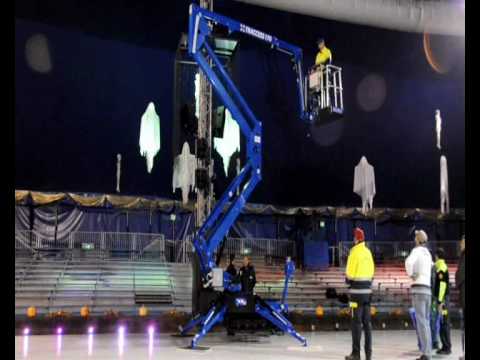

The TRACCESS 170 is an innovative and versatile tracked spider access platform from CTE that’s tailored to a wide range of tasks. It features a unique articulated boom with two elements, a telescopic main boom plus extension, and a jib, delivering exceptional outreach and manoeuvrability. This platform boasts an impressive working height of up to 17 metres and a maximum outreach of 7.5 metres, ideal for both tight spaces and high-reach tasks.
It comes equipped with a 330° turret rotation on a bearing turntable, ensuring superior flexibility and positioning. The TRACCESS 170 is designed with safety in mind, featuring individual hydraulic controls in the basket, automatic basket levelling, and a load sensing device. The hydraulic outriggers come with ground pressure sensors which help to provide stability and safety during operation of the platform.
The TRACCESS 170 is suitable for a wide range of applications, including bridge maintenance, building construction, and tree care, making it the ideal choice for a wide variety of industries.
Download Working EnvelopeDownload Brochure
Key Features
- Articulated boom (two elements) + telescopic boom (main boom + extension) + jib
- 330° turret rotation on bearing turntable
- Individual, proportional electrohydraulic controls in the basket
- Engine start and stop controls from the basket
- Basket base in composite material with aluminium guardrails
- Automatic hydraulically actioned basket levelling system
- Basket load sensing device
- 4 x hydraulic outriggers with ground pressure sensors
- Extending width drive track
- Lower platform height with extended track
Specifications
| Max Lift Capacity | 200 kg (2 persons) |
|---|---|
| Max Working Height | 17 m* |
| Max Outreach | 7.5 m* |
| Transport Dimensions (L x W x H) | 4250 x 800 x 2000 mm |
| Basket Dimensions | 1300 x 700 x 1100 mm |
| Floor Height | 15 m |
| Turret Rotation | 330º |
| Outrigger Support Dimensions | 2826 x 2852 mm |
| Total Weight | 2050 kg |
| Engine | 230 V 1,5 Kw auxiliary engine |
| Max Drive speed | 1,5 Km/h |
* outreach and max height values can change within ± 3% due to manufacturing variation and working condition.
