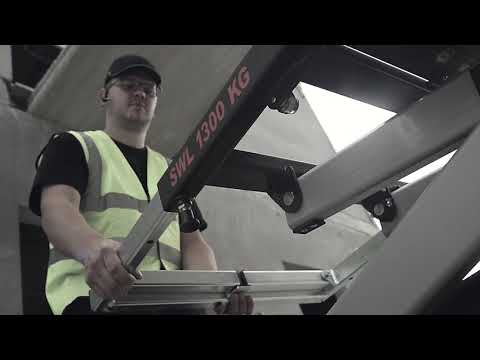

The all-new ST1300 is a fully motorised trolley from Smartlift. The self-propelled trolley allows materials such as plasterboard, fireboard and steel pipework, etc. to be manoeuvred in a safe manner with zero manual effort. The trolley also has a lift mechanism and when used in conjunction with trestles, the materials can be safely unloaded without the need for a forklift truck.
This unit was built to meet the needs of dryliners, fit-out and partition wall professionals and mechanical/electrical companies looking for safe and efficient site solutions.
Download Brochure
Key Features
- 1300kg load capacity
- Driving speeds of 2km/h (floor raised) and 6km/h (floor lowered)
- 2 x 12V 95Ah AGM batteries allowing for 8 hours of operation
- Integrated 110V/230V charger with indicator
Available Models
Specifications - ST1300 Trolley
| SWL / rated load | 1,300 kg / 2,866 lbs. |
|---|---|
| Floor dimensions | 1,880 x 700 mm / 2,680 mm x 700 mm 74 x 28 in. / 106 x 28 in. |
| Floor height | 600 - 900 mm / 23 - 35 in. |
| Total length | 2,850 mm / 112 in. |
| Total length when shipped | 2,100 mm / 83 in. |
| Wheel base | 1,438 mm / 57 in. |
| Extension - handlebar | 220 mm / 9 in. |
| Ground clearance | 135 mm / 5 in. |
| Raise / lower floor | 10 sec. |
| Driving speeds | Floor raised = 1 km/h / 0.6 mph. Floor lowered = 5 km/h / 3.1 mph. |
| Battery | 2 x 12V 95Ah |
| Operating time | 8 hours |
| Wheels | Foam-filled off-road tires |
| Turning radius | 3.1 m / 10.2 ft. |
| Charger with indicator | Integrated 110V / 230V |
| Curb weight | 450 kg / 1,000 lbs. |
