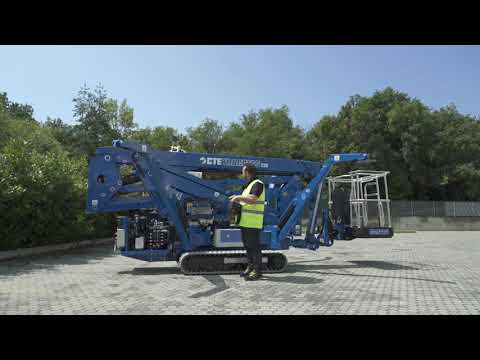

The CTE TRACCESS 230 is a high-performance track-mounted access platform, featuring an advanced articulated boom design with two elements, a telescopic boom with two extensions, and a jib. This configuration provides a significant working height of up to 23 metres and a maximum outreach of 12 metres, making it ideal for a wide range of high-reach tasks.
Equipped with a 360° non-continuous turret rotation and proportional electrohydraulic controls, the TRACCESS 230 offers precise and flexible movement. It also includes important safety features like a basket load sensing device and hydraulic basket rotation, ensuring both safety and comfort for the operator.
The versatility and robust design of the TRACCESS 230 makes it a valuable asset for a wide range of applications. It is particularly suited for challenging tasks such as wind turbine maintenance, bridge maintenance, construction work, and tree care.
Download Brochure
Key Features
- Articulated boom (two elements) + telescopic boom (main boom + 2 extension) + jib
- Sigma boom movement enabled by connecting rods
- 360° non continuous turret rotation on bearing turntable
- Proportional electrohydraulic controls in the basket
- Engine start and stop controls from the basket
- Basket base in composite material with aluminium guardrails
- 90° right + 90° left hydraulic basket rotation
- Basket load sensing device
Specifications
| Max Lift Capacity | 200 kg (2 persons) |
|---|---|
| Max Working Height | 23 m* |
| Max Outreach | 12 m* |
| Transport Dimensions (L x W x H) | 5337 x 780 x 2010 mm |
| Basket Dimensions | 1300 x 700 x 1100 mm |
| Floor Height | 21 m |
| Turret Rotation | 360º |
| Outrigger Support Dimensions | 4324 x 4220 mm |
| Total Weight | 2900 kg |
| Engine | Honda 15 Hp petrol engine or Kubota diesel engine |
| Max Drive speed | 1.25 mph |
* outreach and max height values can change within ± 3% due to manufacturing variation and working condition.
