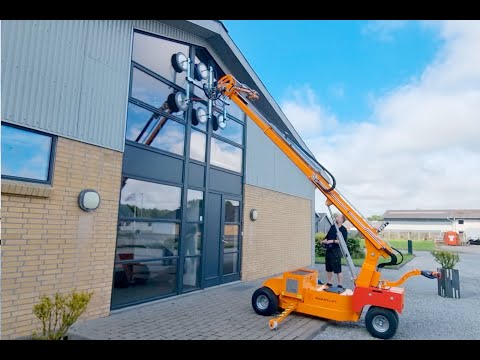

The SL 809 High Reach is the highest-reaching vacuum lifter in the Smartlift range, capable of lifting up to 800kg (depending on outreach) at a height of up to 6.02m! Designed to lift materials to first-floor heights and beyond, this machine is perfect for tasks that demand both precision and strength at greater elevations.
The SL 809 handles glass, stone, and metal with ease. Its advanced hydraulic system and remote-controlled rotating yoke guarantee safe and efficient material handling.
Download Brochure
Key Features
- Up to 800 kg lifting capacity (depending on outreach)
- Up to 6.02m lifting height (depending on outreach)
- Off-road chassis with 2500 W front-wheel drive system
- Sideway shifting up to 10 cm (4") for higher flexibility
- Remote controlled vacuum system
- Up to 10 hours operating time
- 8 hours charging time
- Large wheels and dual rear wheels
Available Models
Specifications - SL 809 High Reach
| Lifting cap. arm in/out | 800 / 90 kg - 1,760 / 200 lbs. |
|---|---|
| Lifting height | 6020 mm / 237 in. |
| Extension of arm | 1280+1280 mm / 50+50 in |
| Tilt | 44° back / 80° fwd |
| Side shift | 100 mm /4 in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2500 W |
| Suction pads | 6 x Ø400mm / 6x16 in. |
| Width | 1,020 mm / 40 in. |
| Curb weight | 1,510 kg / 3,330 lbs. |
Optional Extras
Smartlift glazing robots are available with a wide range of optional accessories. The robot can be quickly transformed into a lifting crane or a forklift truck with the right purpose-built accessory. Follow the link below to download the full list of Smartlift accessories.
