Avant 400
Series

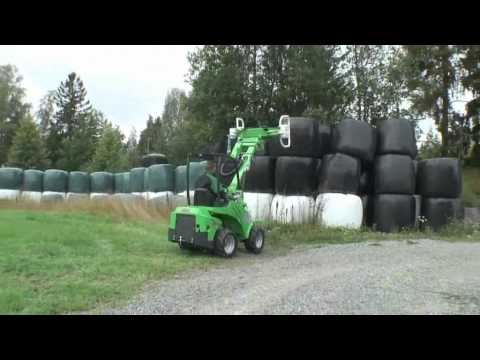

The Avant 400 series mini loader is a light and economical workhorse, perfect for stables, farming and private use. Its narrow width allows passage through restricted paths and gateways. They are simple and easy to use thanks to articulated steering and hydrostatic transmissions. The telescopic boom is standard and is powered by Kubota.

A wide variety of Avant attachments are available with everything from general buckets to specialised tools such as cutting bars and flail mowers. Please note that all front-end attachments are sold separately.

Configure Your Own AvantDownload Brochure
Avant 400 Series

Key Features

  • Light and economical to operate
  • Perfect farming, stables and many other uses
  • Simple and easy to operate
  • Articulated steering and hydraulic transmission
  • Wide range of attachments available
  • Telescopic boom available as an option
  • L cab available as an option

Available Models

Specifications - Avant 423

Length 2195 mm
Width (standard wheels) 1050 mm
Height 1980 mm
Weight 1030-1080 kg
Standard wheels 23x8.50-12”TR
Transmission, drive Hydrostatic
Pulling force 700 kp
Drive speed max. 12 km/h
Aux. hydraulics oil flow / pressure 34 l/min 185 bar
Turning radius inside/outside 880 / 1970 mm
Max. lifting height (with telescopic boom) 2750 mm
Tipping load * 550 kg
Engine make and type Kubota D902
Engine output (ISO Gross) 16 kW (22 hp)
Fuel Diesel

* Lift capacity with a 90 cm pallet

Dimensions - Avant 423

Avant 423 dimensions from the side.       Avant 423 dimensions from the front.

Optional Extras

The range of Avant loaders is available with a wide variety of different options and attachments. This includes everything from general buckets to specialised tools such as cutting bars and flail mowers. We have a page dedicated to the range which you can access below. Please note that all front-end attachments are sold separately.
