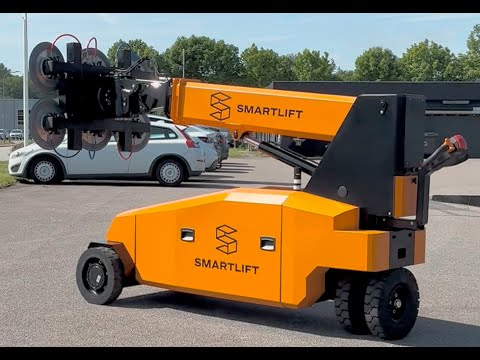

The SLX 2000 is a new, powerful vacuum lifting solution that’s designed to handle a wide range of tasks across the construction and industrial sectors. It can be fitted with electric, hydraulic, standard or bespoke tools, with rapid tool changes made possible thanks to a dedicated quick-change system.

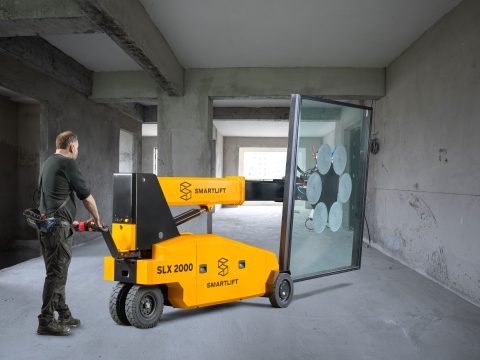

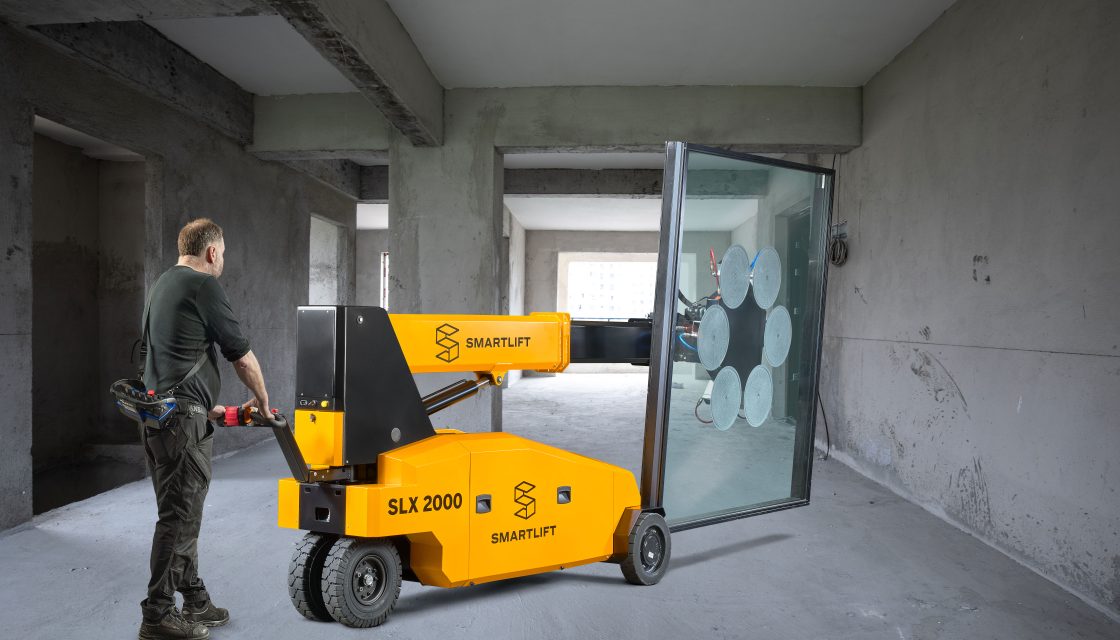

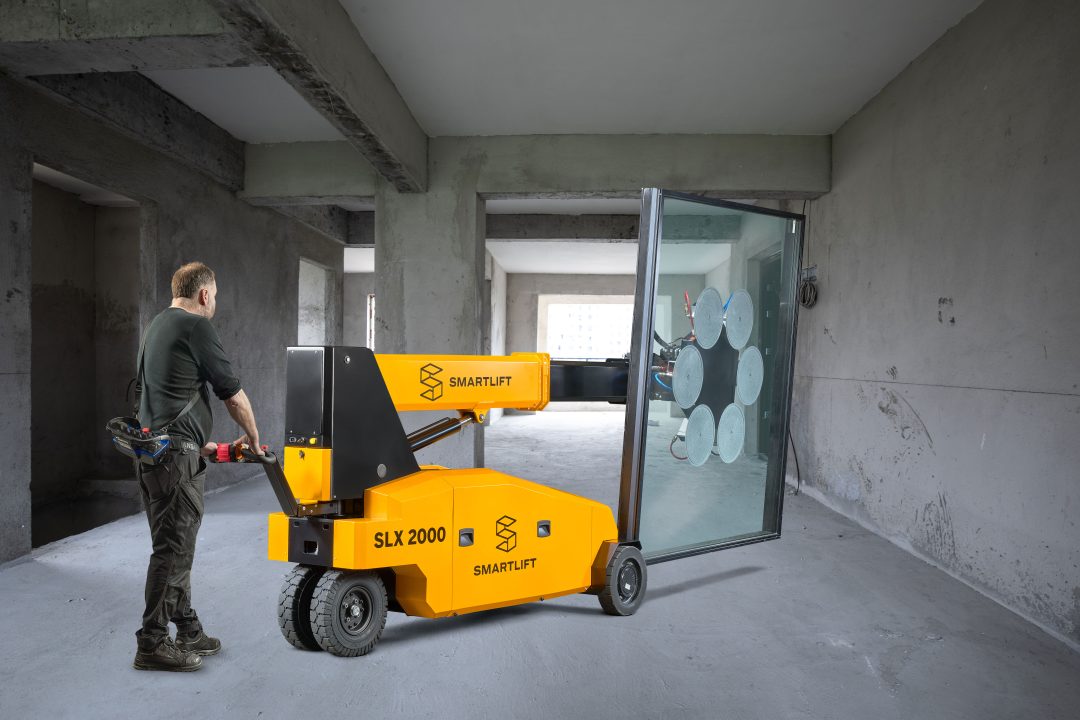

All functions (and driving, if selected) are easily operated via remote control. Power steering ensures effortless manoeuvrability, even in confined spaces. The yoke can rotate, allowing loads to be moved parallel to the machine, making it easier to transport materials through narrow doorways and passageways.
With a chassis of just over 1m wide, the SLX 2000 is perfectly suited to working in restricted areas. It’s a solution that delivers impressive lifting capacities combined with precision, safety and efficiency.
Download Brochure
Key Features
- Up to 1,000 kg lifting capacity with the vacuum yoke.
- Up to 1,500 kg lifting capacity with the hydraulic winch.
- Up to 1,400 kg lifting capacity with the lifting hook.
- Up to 800 kg lifting capacity with the fly-jib and pallet forks.

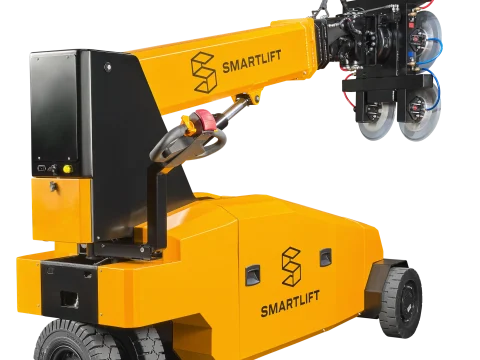

- Multifunctional, rotary head/yoke with infinite rotation of the yoke
- Pivotable yoke (88° to the side), allowing loads parallel to the machine

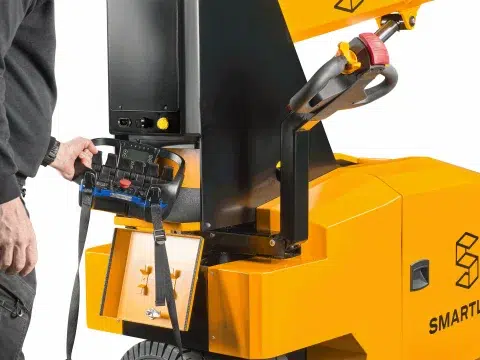

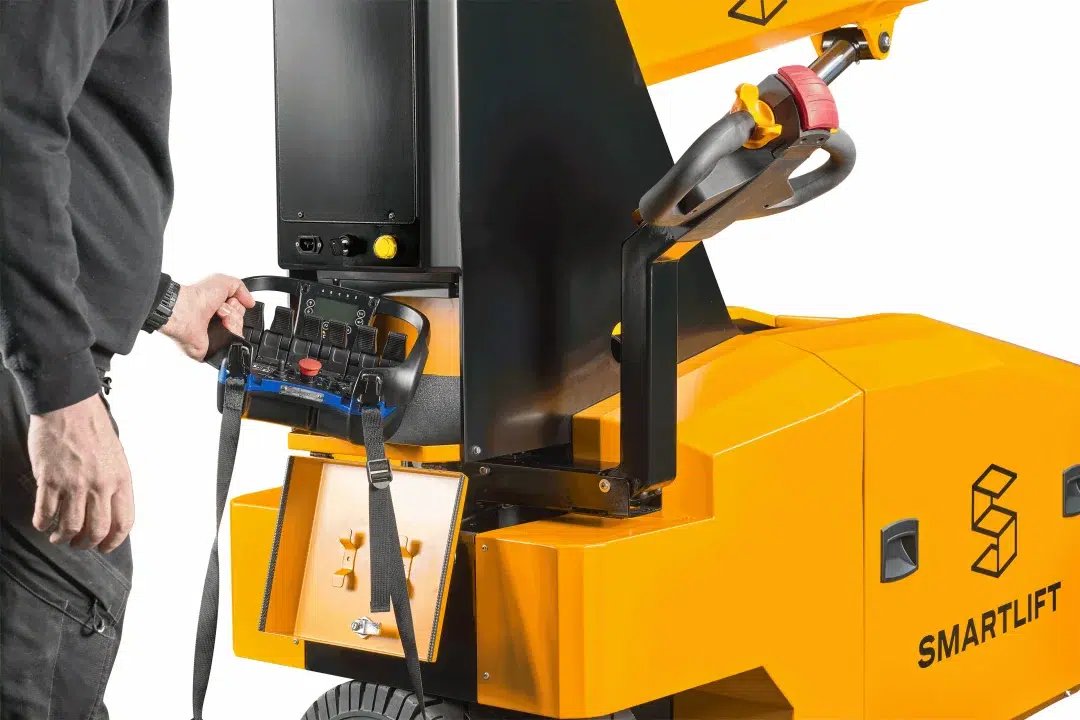

- Remote-control of all functions (and optionally the driving system)
- Can be equipped with electric, hydraulic, standard and custom-built tools
- Quick-change system allowing fast and easy tool changes
- Narrow chassis of 1.01 m
- Power steering
- Up to 10 hours run time per charge
Available Models

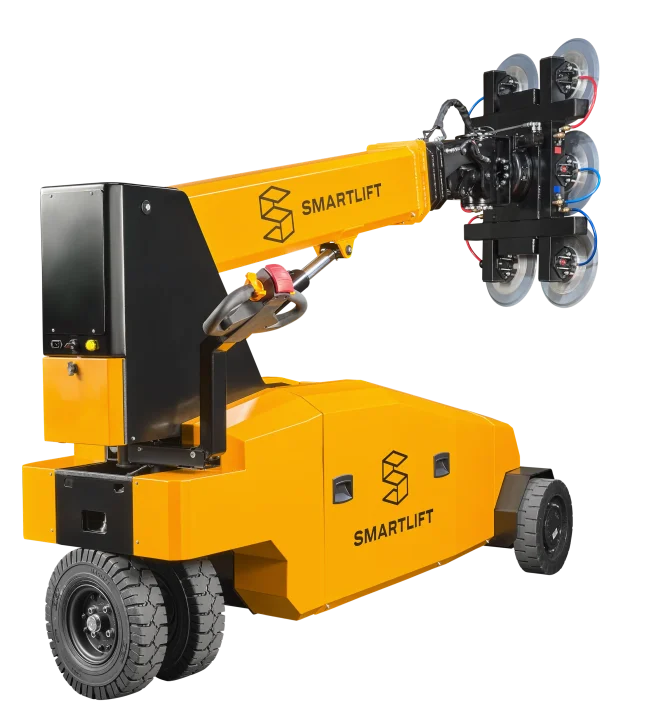

Specifications - Vacuum Yoke
| Lifting cap. | Up to 1,000kg (2,200 lbs) |
|---|---|
| Lifting height | 5,85m / 19,19ft |
| Horizontal reach | 2.7m / 8,85ft |
| Rotation | Endless rotation, 88° turn |
| Extension of arm | 2x 1150mm /2x 3,77ft |
| Tilt | 65° back / 98° fwd |
| Side shift | 100mm / 4in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2 x 1500W |
| Width | 1,01m / 3,31ft |
| Curb weight (Inc. Vacuum Yoke) | 1,900kg / 4,180lbs |

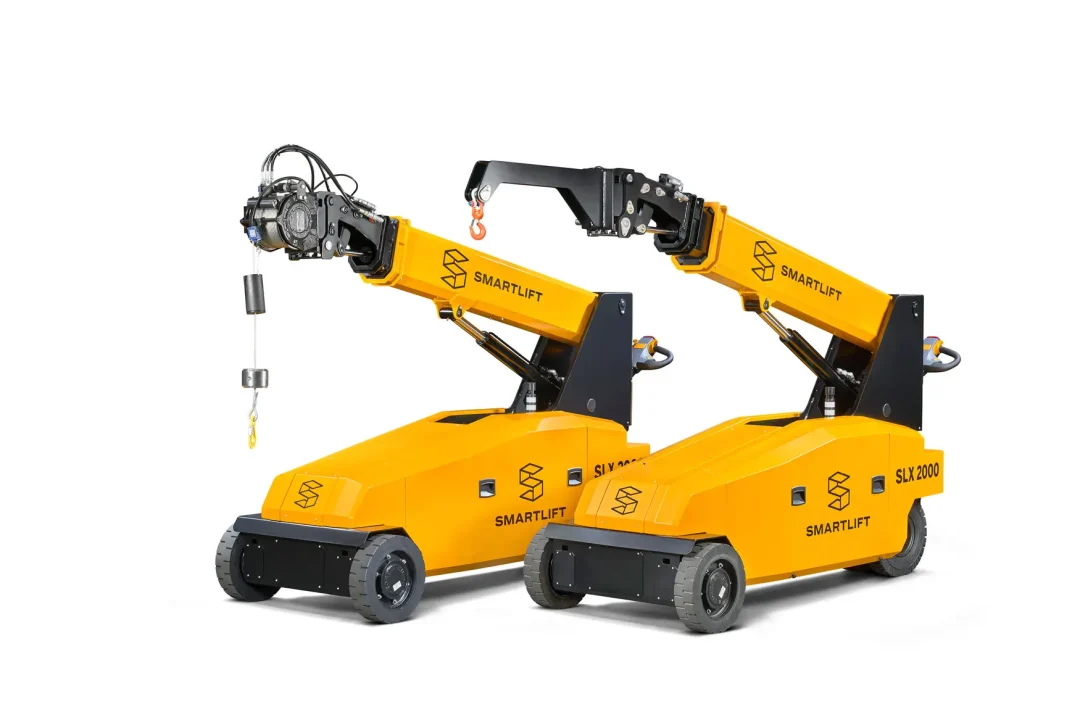

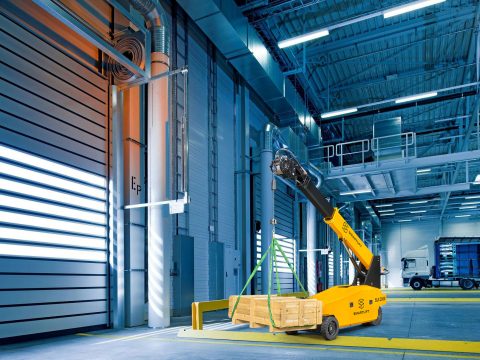

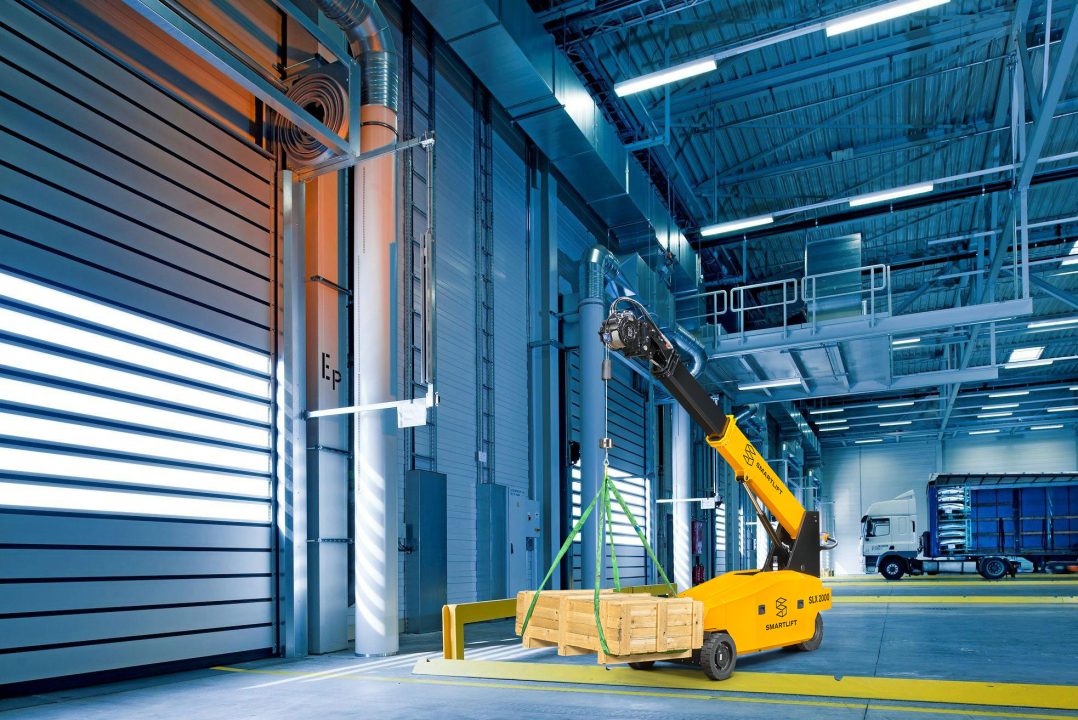

Specifications - Hydraulic Winch
| Lifting cap. | Up to 1,500kg (3,306 lbs) |
|---|---|
| Lifting height | 4.5m / 14,76ft |
| Horizontal reach | 2.6m / 8,53ft |
| Wire length | 50m / 164ft |
| Extension of arm | 2x 1150mm /2x 3,77ft |
| Tilt | 65° back / 98° fwd |
| Side shift | 100mm / 4in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2 x 1500W |
| Width | 1,01m / 3,31ft |
| Curb weight (Inc. Hydraulic Winch) | 1,820kg / 4,012lbs |
Specifications - Fly-Jib
| Lifting cap. | Up to 800kg (1,763 lbs) |
|---|---|
| Lifting height | 5,85m / 19,19ft |
| Horizontal reach | 3m / 9,84ft |
| Fly-Jib Length | 0.8m / 2,62 ft |
| Extension of arm | 2x 1150mm /2x 3,77ft |
| Tilt | 65° back / 98° fwd |
| Side shift | 100mm / 4in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2 x 1500W |
| Width | 1,01m / 3,31ft |
| Curb weight (Inc. Fly-Jib) | 1,780kg / 3,924lbs |

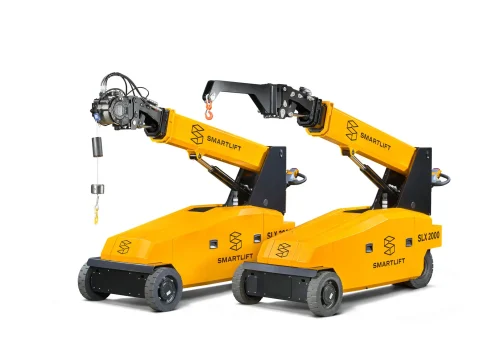

Specifications - Lifting Hook
| Lifting cap. | Up to 1,400kg (3,086 lbs) |
|---|---|
| Lifting height | 5,35m / 17,55ft |
| Horizontal reach | 2.5m / 8,20ft |
| Hook Length | 0.32m / 1,04 ft |
| Extension of arm | 2x 1150mm /2x 3,77ft |
| Tilt | 65° back / 98° fwd |
| Side shift | 100mm / 4in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2 x 1500W |
| Width | 1,01m / 3,31ft |
| Curb weight (Inc. Lifting Hook) | 1,770kg / 3,902lbs |
Specifications - Pallet Forks
| Lifting cap. | Up to 800kg (1,763 lbs) |
|---|---|
| Lifting height | 4,35m / 14,27ft |
| Horizontal reach | 3m / 9,84ft |
| Fork Length | 1.2m / 3,93 ft |
| Extension of arm | 2x 1150mm /2x 3,77ft |
| Tilt | 65° back / 98° fwd |
| Side shift | 100mm / 4in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Running period | Up to 10 hrs. |
| Front-wheel drive | 2 x 1500W |
| Width | 1,01m / 3,31ft |
| Curb weight (Inc. Forks) | 1,830kg / 4,034lbs |
Optional Extras
Smartlift glazing robots are available with a wide range of optional accessories. The robot can be quickly transformed into a lifting crane or a forklift truck with the right purpose-built accessory. Follow the link below to download the full list of Smartlift accessories.
