Leguan
135 NEO

The Leguan 135 NEO represents a new generation of access platform that combines an easy-to-use interface, heavy lifting capacity, and efficiency-enhancing technology. It features a maximum working height of 13.4m, maximum outreach of 7.1m and a maximum lifting capacity of 250kg.

The state-of-the-art joystick including with the 135 NEO allows simultaneous use of multiple boom movements with just a single hand. The platform also features a smart automatic levelling function and a ‘home’ function that automatically brings the boom back to the transport position.

Manoeuvring the Leguan 135 NEO through tight spaces and building entrances is a quick and easy process with the help of its smooth drive control and narrow width. The new innovative boom structure helps the operator maintain distance to the walls. This spider lift is perfect for rental use and all kinds of facility maintenance and installation work whether it be indoor or outdoor.

This platform is powered by a 13 hp Honda petrol engine with a 230 V electric motor as standard.

Download Brochure

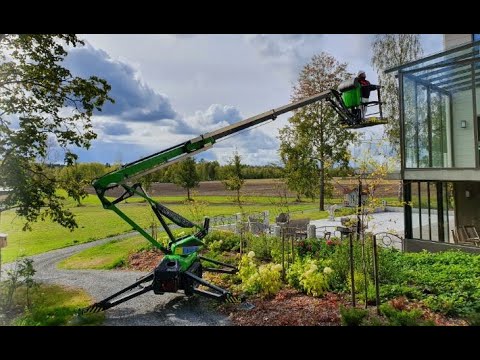

Leguan 135 NEO access platform.

Key Features

  • 13 hp Honda petrol engine + 230 V electric motor
  • 230 V and 12 V power outlets on the platform
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home function/back to work positioning system
  • Electric and hand pump powered emergency lowering system
  • Lower controls

Specifications

Max Lift Capacity 250 kg (2 persons)
Max Working Height 13.4m
Max Platform Height 11.4m
Max Outreach 7.1m (120 kg) - 6.6m (250 kg)
Transport Dimensions (L x W x H) 4.58m x 1.33m x 1.93m
Platform Dimensions 1.33m x 0.75m
Rotation of The Platform 80º (±40º)
Slewing 360º
Gradeability 40% (22º)
Outrigger Support Dimensions 3.27 x 3.29m
Max Slope for Outriggers 21% (12º)
Weight 1650kg
Engine Honda 13 hp petrol or 230 V / 2.2 kW electric
Drive System (Hydraulic) 4WD / Tracks
Max Drive speed 2.5 km/h

Optional Extras

  • Platform control panel lighting and LED spotlights
  • Remote control for driving and outriggers
  • Tool trays on the platform
  • Outrigger beacons
  • Hose to the platform (air/water)
  • Signal horn
  • Larger plates for outriggers
  • Non-marking tracks/tyres
  • Narrow single person platform
  • Leguan special trailer

Leguan Optional Extras (PDF)
