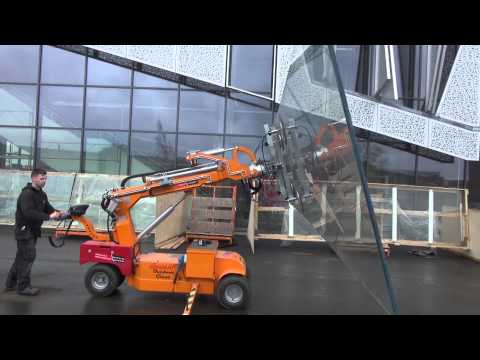

The Smartlift SL 808 Outdoor is our second largest rough terrain glazing robot. This machine is suitable for both outdoor and indoor use with no modifications. It is capable of handling glass units and window frames weighing up to 820 kilograms and is the safest and most efficient solution when it comes to the installation of extremely large and heavy window and door systems.
This is a fully self-propelled electric unit with full remote control functions. This keeps the operator in safe and precise control of the lift as he/she can manipulate the machine from either side of the glass.
Download Brochure
Key Features
- 2 vacuum circuits with 2 pumps
- Front-wheel drive
- Big wheels
- Electronic brake
- Dual rear wheels
- Remote control for all hydraulic functions
- Waterproof according to ip65
Available Models
Specifications - SL 808 Outdoor
| Lifting cap. arm in/out | 820 / 200 kg - 1,810 / 440 lbs. |
|---|---|
| Lifting height | 4,400 mm / 173 in. |
| Extension of arm | 2 x 830 mm / 2 x 33 in. |
| Tip from horizontal | 42° back/ 86° fwd. |
| Side shift | 100 mm /4 in. |
| Charging voltage | 230 V / 110V |
| Charging time | Approx. 8 hrs. |
| Battery | 4 x 134 Ah AGM |
| Running period | Up to 8 hrs. |
| Front-wheel drive | 2000 W AC |
| Suction pads | 4 x Ø400mm & 2 x Ø300mm / 4 x Ø16 in. & 2 x Ø12 in. |
| Width | 1,010 mm / 40 in. |
| Curb weight | 1,480 kg / 3,260 lbs. |
| Class | IP 65 |
Optional Extras
Smartlift glazing robots are available with a wide range of optional accessories. The robot can be quickly transformed into a lifting crane or a forklift truck with the right purpose-built accessory. Follow the link below to download the full list of Smartlift accessories.
