Leguan
190

The Leguan 190 is a robust and steady all-terrain spider lift that’s perfect for heavy duty professional use. It features a maximum working height of 19m, maximum outreach of 9.8m and a maximum lifting capacity of 230kg.

With excellent up-and-over clearance and a user-friendly interface, the Leguan 190 access platform is perfectly suited to arborist, construction and facility maintenance work. A high level of ground clearance and a tracked (or four wheel drive) chassis offers fast and smooth access, even on rough terrain!

This platform is powered by a 14 hp Kubota diesel with a 230 V electric motor as standard.

Download Brochure

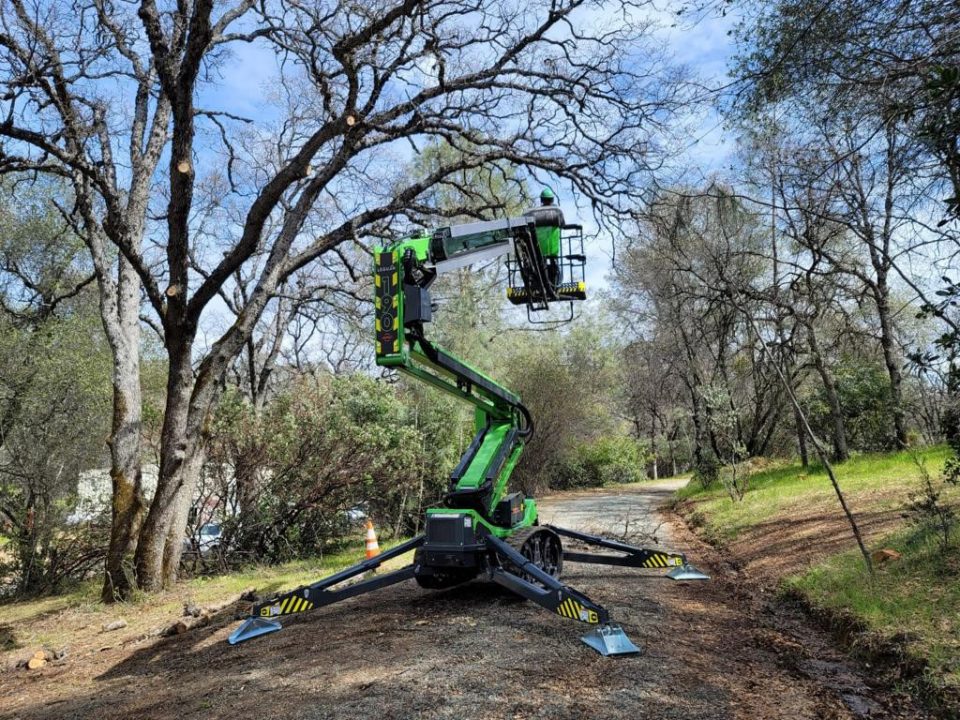

Leguan 190 access platform.

Key Features

  • 14 hp Kubota diesel + 230 V electric motor
  • 230 V and 12 V power outlets on the platform
  • Automatic engine RPM control
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • JIB-boom with 120º operating range
  • Electric and hand pump powered emergency lowering system
  • Lower controls with integrated service display

Specifications

Max Lift Capacity 230 kg (2 persons)
Max Working Height 19m
Max Platform Height 17m
Max Outreach 8.1m (230 kg) - 9.8m (120 kg)
Transport Dimensions (L x W x H) 5.1m x 1.33m x 2.01m
Platform Dimensions 1.33m x 0.75m
Rotation of The Platform 90º (±45º)
Slewing 360º
Gradeability 40% (22º)
Outrigger Support Dimensions 3.60 x 3.69m
Max Slope for Outriggers 21% (12º)
Weight 2660kg
Engine Kubota 14 hp diesel or 230 V / 2.2 kW electric
Drive System (Hydraulic) 4WD / Tracks
Max Drive speed 2.6 km/h (5.2 km/h available as an option)

Optional Extras

  • Extra drive speed (max. 5.2 km/h)
  • Remote control for driving and outriggers
  • Platform control panel lighting and LED spotlights
  • Tool trays on the platform
  • Outrigger beacons
  • Hose to the platform (air/water)
  • Signal horn
  • Engine heater
  • Larger plates for outriggers
  • Non-marking tracks/tyres
  • Narrow single person platform
  • Leguan special trailer

Leguan Optional Extras (PDF)
